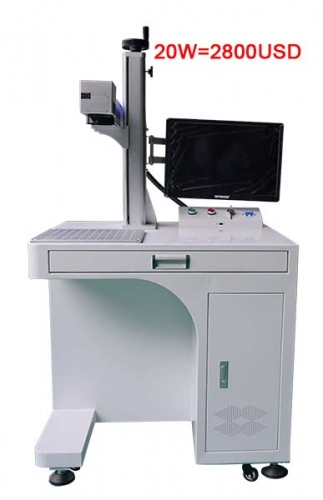

Fiber laser marking and engraving systems are a fast, clean technology rapidly replacing older laser technologies. Direct laser marking has become a common process today in many industries.

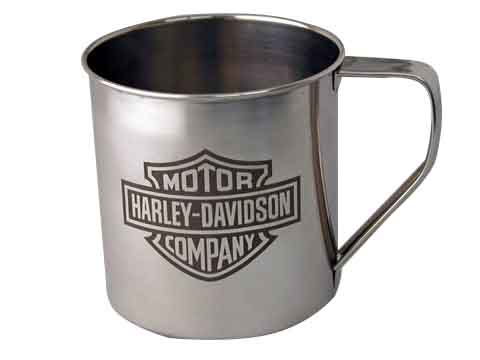

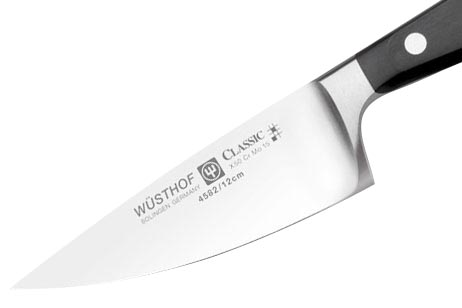

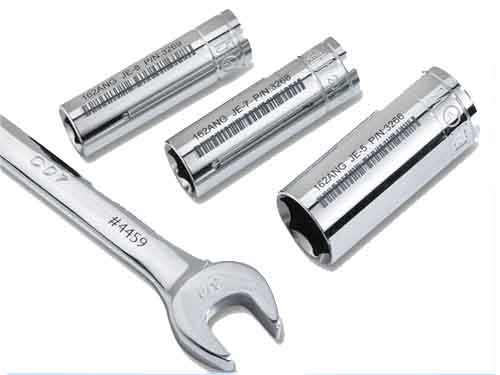

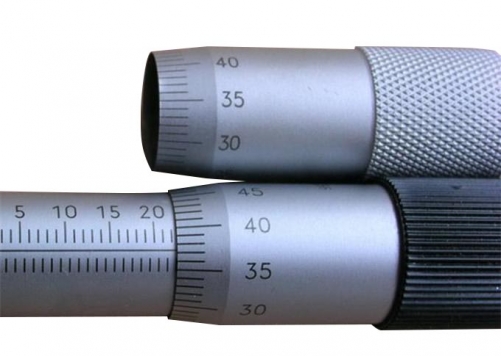

It offers a non-contact, abrasion-resistant, permanent laser mark onto almost any type of material. High speed, high precision, micro laser marking and/or laser engraving of part information, readable alpha-numerics, barcodes or data-matrix, serial numbers, corporate logos, etc. are possible on a wide range of component parts.
Multiple F-Theta Lens Options;
Easily Integrated Footprint;
Laser power: 20W/30W/50W/100W
Laser wavelength: 1064nm
Laser source: IPG/MAX/JPT
Q-switch frequency : 20KHZ-100KHZ
Optical quality: M2≤1.4
Marking field: 100*100mm/175*175mm
Minimum line width: 0.01mm
Minimum character: 0.1mm
Marking speed : 0~7000m/s
Cooling system : Air cooling
Repeat accuracy :0.01mm
Input power : AC 220V±22V 50Hz/60Hz 10A
Power of machine : ≤500W
lifetime :100,000hours(if properly operated)
Machine size: 800*650*1520mm
