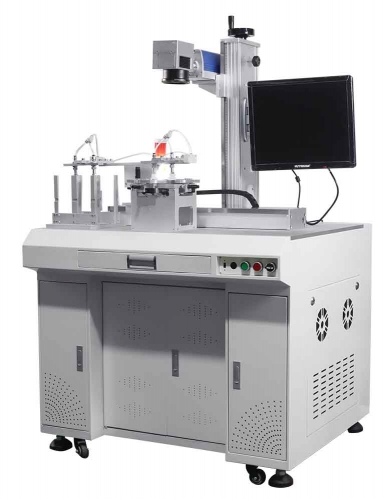

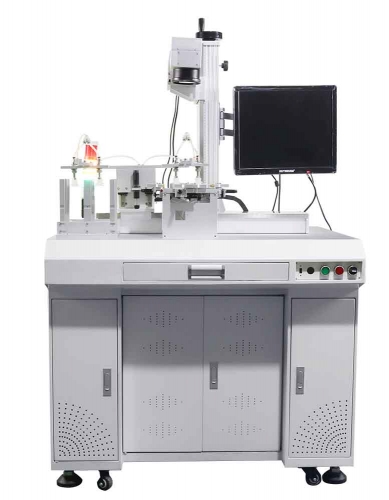

Card and Metallic Plate Laser Engraving System
Item No.: SST-A-002
- Automated feeding, positioning, nloading
- Other material sizes acceptable

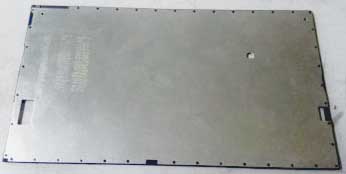

Specially designed for quare-shaped flimsy materials with limited size;

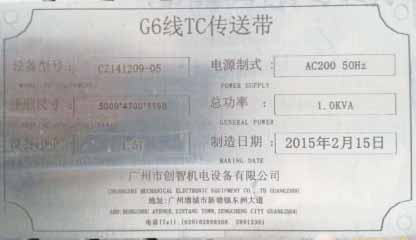

Material could be metal, plastics and paper;
High stability and easy to operate
Laser power: 20W/30W/50W
Laser wavelength: 1064nm
Q-switch frequency : 20KHZ-100KHZ
Marking field: 100mm*100mm/160mm*160mm
Minimum line width: ≤0.02mm
Minimum character: 0.1mm
Marking speed : 0~7000m/s
Cooling system : air/water
Marking software: Samlight/BJJCZ
Supporting file: PLT/DXF/BMP/JPEG/AI etc.
Repeat accuracy :0.05mm
Material tank height: 150mm
Input power : 220VAC/50HZ/60HZ 10A
Power of machine : ≤700W
Machine size: 985*850*1500mm
